MNIST dataset#
A more advanced example is shown below, where MMD [1] is applied as a drift detector to the well-known MNIST image dataset.
The goal is to apply GaussianBlur and ElasticTransform transformations to some of the images in order to simulate a drift process at the feature level (data drift) that would likely end up affecting the performance of a machine learning model.
In order to ensure reproducibility, a set_seed function is use, as well as the device where to perform PyTorch operations (CPU or GPU).
def set_seed(seed=31):
torch.backends.cudnn.deterministic = True
torch.backends.cudnn.benchmark = False
torch.manual_seed(seed)
np.random.seed(seed)
seed = 31
set_seed(seed=seed)
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
Data is split in:
Train: These images will be only used to train an autoencoder that will allow to reduce the dimensionality from 784(28x28x1) to 5 dimensions \(\phi : \mathbb{R}^{28x28x1}\rightarrow \mathbb{R}^{5}\), where \(\phi\) is the encoder. 30000 samples.
Reference: These images will represent the samples that come from the training distribution and will act as a reference. 30000 samples.
Test: These images may belong to the original distribution of the data, or they may suffer some of the transformations mentioned above. 10000 samples.
transform = torchvision.transforms.Compose(
[
torchvision.transforms.ToTensor(), # Convert images to the range [0.0, 1.0] (normalize)
]
)
batch_size = 64
train_all_dataset = torchvision.datasets.MNIST(
root="/tmp/mnist/train/",
train=True,
download=True,
transform=transform,
)
test_dataset = torchvision.datasets.MNIST(
root="/tmp/mnist/test/",
train=False,
download=True,
transform=transform,
)
train_all_dataset_size = len(train_all_dataset)
train_dataset_size = int(train_all_dataset_size * 0.5)
reference_dataset_size = train_all_dataset_size - train_dataset_size
train_dataset, reference_dataset = torch.utils.data.random_split(dataset=train_all_dataset, lengths=[train_dataset_size, reference_dataset_size], generator=torch.Generator().manual_seed(31))
train_data_loader = torch.utils.data.DataLoader( # 30000 samples
dataset=train_dataset,
batch_size=batch_size,
shuffle=True
)
Downloading http://yann.lecun.com/exdb/mnist/train-images-idx3-ubyte.gz
Downloading http://yann.lecun.com/exdb/mnist/train-images-idx3-ubyte.gz to /tmp/mnist/train/MNIST/raw/train-images-idx3-ubyte.gz
Extracting /tmp/mnist/train/MNIST/raw/train-images-idx3-ubyte.gz to /tmp/mnist/train/MNIST/raw
Downloading http://yann.lecun.com/exdb/mnist/train-labels-idx1-ubyte.gz
Downloading http://yann.lecun.com/exdb/mnist/train-labels-idx1-ubyte.gz to /tmp/mnist/train/MNIST/raw/train-labels-idx1-ubyte.gz
Extracting /tmp/mnist/train/MNIST/raw/train-labels-idx1-ubyte.gz to /tmp/mnist/train/MNIST/raw
Downloading http://yann.lecun.com/exdb/mnist/t10k-images-idx3-ubyte.gz
Downloading http://yann.lecun.com/exdb/mnist/t10k-images-idx3-ubyte.gz to /tmp/mnist/train/MNIST/raw/t10k-images-idx3-ubyte.gz
Extracting /tmp/mnist/train/MNIST/raw/t10k-images-idx3-ubyte.gz to /tmp/mnist/train/MNIST/raw
Downloading http://yann.lecun.com/exdb/mnist/t10k-labels-idx1-ubyte.gz
Downloading http://yann.lecun.com/exdb/mnist/t10k-labels-idx1-ubyte.gz to /tmp/mnist/train/MNIST/raw/t10k-labels-idx1-ubyte.gz
Extracting /tmp/mnist/train/MNIST/raw/t10k-labels-idx1-ubyte.gz to /tmp/mnist/train/MNIST/raw
Downloading http://yann.lecun.com/exdb/mnist/train-images-idx3-ubyte.gz
Downloading http://yann.lecun.com/exdb/mnist/train-images-idx3-ubyte.gz to /tmp/mnist/test/MNIST/raw/train-images-idx3-ubyte.gz
Extracting /tmp/mnist/test/MNIST/raw/train-images-idx3-ubyte.gz to /tmp/mnist/test/MNIST/raw
Downloading http://yann.lecun.com/exdb/mnist/train-labels-idx1-ubyte.gz
Downloading http://yann.lecun.com/exdb/mnist/train-labels-idx1-ubyte.gz to /tmp/mnist/test/MNIST/raw/train-labels-idx1-ubyte.gz
Extracting /tmp/mnist/test/MNIST/raw/train-labels-idx1-ubyte.gz to /tmp/mnist/test/MNIST/raw
Downloading http://yann.lecun.com/exdb/mnist/t10k-images-idx3-ubyte.gz
Downloading http://yann.lecun.com/exdb/mnist/t10k-images-idx3-ubyte.gz to /tmp/mnist/test/MNIST/raw/t10k-images-idx3-ubyte.gz
Extracting /tmp/mnist/test/MNIST/raw/t10k-images-idx3-ubyte.gz to /tmp/mnist/test/MNIST/raw
Downloading http://yann.lecun.com/exdb/mnist/t10k-labels-idx1-ubyte.gz
Downloading http://yann.lecun.com/exdb/mnist/t10k-labels-idx1-ubyte.gz to /tmp/mnist/test/MNIST/raw/t10k-labels-idx1-ubyte.gz
Extracting /tmp/mnist/test/MNIST/raw/t10k-labels-idx1-ubyte.gz to /tmp/mnist/test/MNIST/raw
100%|██████████| 9912422/9912422 [00:00<00:00, 82672747.28it/s]
100%|██████████| 28881/28881 [00:00<00:00, 90063712.88it/s]
100%|██████████| 1648877/1648877 [00:00<00:00, 30186558.11it/s]
100%|██████████| 4542/4542 [00:00<00:00, 18955750.02it/s]
100%|██████████| 9912422/9912422 [00:00<00:00, 90991823.99it/s]
100%|██████████| 28881/28881 [00:00<00:00, 47097859.19it/s]
100%|██████████| 1648877/1648877 [00:00<00:00, 32077418.35it/s]
100%|██████████| 4542/4542 [00:00<00:00, 7941029.08it/s]

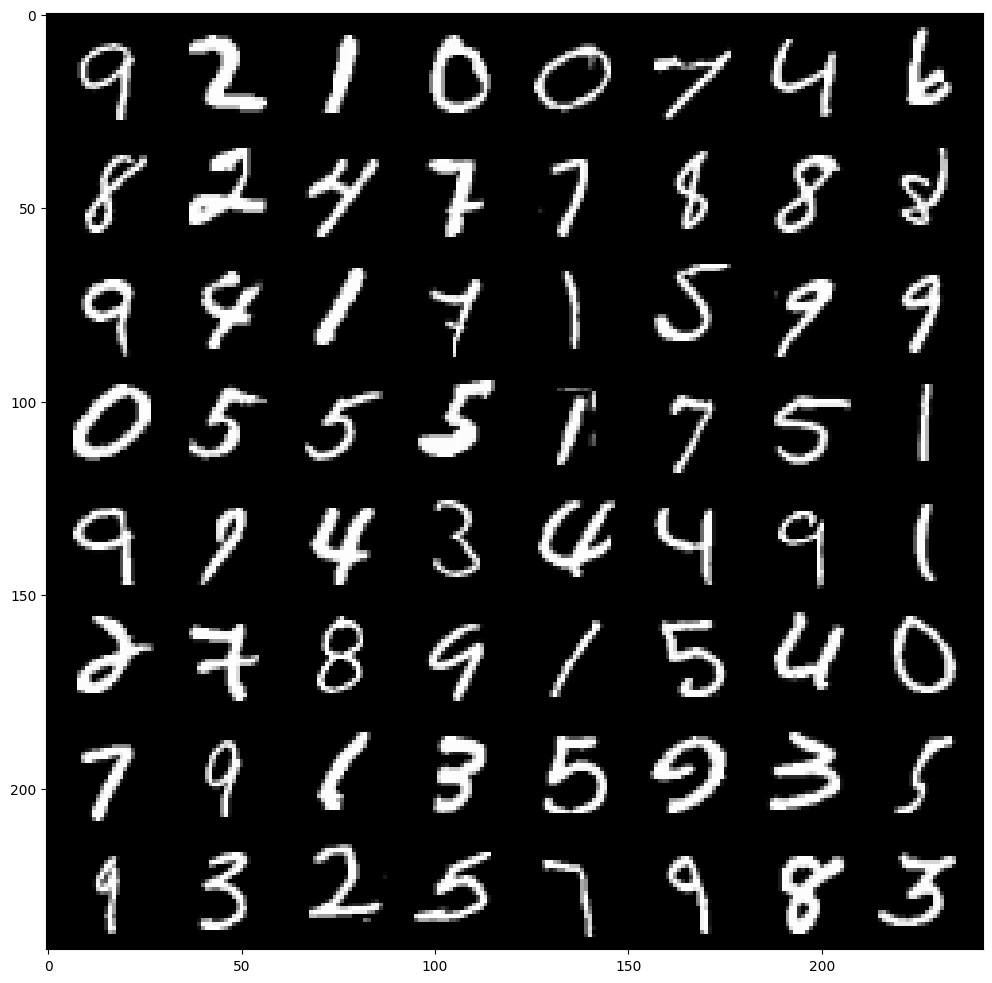

Show some example MNIST images that will be use to train the autoencoder.
def imshow(img):
npimg = img.numpy()
fig = plt.figure(figsize=(10, 10))
plt.imshow(np.transpose(npimg, (1, 2, 0)), cmap=plt.cm.gray)
fig.tight_layout()
plt.show()
dataiter = iter(train_data_loader)
images, labels = next(dataiter)
imshow(torchvision.utils.make_grid(images))
X_train = np.array([X_sample.tolist() for X_sample, _ in tqdm(train_dataset)]).astype(np.float32)
X_ref = np.array([X_sample.tolist() for X_sample, _ in tqdm(reference_dataset)]).astype(np.float32)
X_test = np.array([X_sample.tolist() for X_sample, _ in tqdm(test_dataset)]).astype(np.float32)
The following is a definition of the parts that make up the autoencoder.
First, the encoder is implemented, which has a very simple architecture in which a convolution section is used, followed by a flatten layer and finally a normal pair of hidden layers that map the output of the convolution section to the desired dimensional space.
class Encoder(nn.Module):
def __init__(self, latent_dim: int):
super().__init__()
self.encoder_conv = nn.Sequential(
nn.Conv2d(1, 8, 3, stride=2, padding=1),
nn.ReLU(True),
nn.Conv2d(8, 16, 3, stride=2, padding=1),
nn.BatchNorm2d(16),
nn.ReLU(True),
nn.Conv2d(16, 32, 3, stride=2, padding=0),
nn.ReLU(True)
)
self.flatten = nn.Flatten(start_dim=1)
self.encoder_lin = nn.Sequential(
nn.Linear(3 * 3 * 32, 128),
nn.ReLU(True),
nn.Linear(128, latent_dim)
)
def forward(self, x):
x = self.encoder_conv(x)
x = self.flatten(x)
x = self.encoder_lin(x)
return x
The decoder simply performs the reverse process of the encoder to obtain the same initial dimensionality reconstructed from the encoder output.
class Decoder(nn.Module):
def __init__(self, latent_dim: int):
super().__init__()
self.decoder_lin = nn.Sequential(
nn.Linear(latent_dim, 128),
nn.ReLU(True),
nn.Linear(128, 3 * 3 * 32),
nn.ReLU(True)
)
self.unflatten = nn.Unflatten(dim=1,
unflattened_size=(32, 3, 3))
self.decoder_conv = nn.Sequential(
nn.ConvTranspose2d(32, 16, 3,
stride=2, output_padding=0),
nn.BatchNorm2d(16),
nn.ReLU(True),
nn.ConvTranspose2d(16, 8, 3, stride=2,
padding=1, output_padding=1),
nn.BatchNorm2d(8),
nn.ReLU(True),
nn.ConvTranspose2d(8, 1, 3, stride=2,
padding=1, output_padding=1)
)
def forward(self, x):
x = self.decoder_lin(x)
x = self.unflatten(x)
x = self.decoder_conv(x)
x = torch.sigmoid(x)
return x
Both blocks combine to form the autoencoder architecture.
class Autoencoder(nn.Module):
def __init__(self, latent_dim: int) -> None:
super().__init__()
self.encoder = Encoder(
latent_dim=latent_dim,
)
self.decoder = Decoder(
latent_dim=latent_dim,
)
def forward(self, x):
encoded = self.encoder(x)
decoded = self.decoder(encoded)
return encoded, decoded
As stated above, the bottleneck dimension of the autoencoder will be 5.
latent_dim = 5
autoencoder = Autoencoder(
latent_dim=latent_dim,
)
In order to prevent that the autoencoder simple learns to copy the input to the output (identity function), we implement contractive loss [3] as a regularizer to learn some meaningful representation of the input in the bottleneck dimensions. For the optimizer, Adam [2] is use.
def contractive_loss(outputs_e, outputs, inputs, lamda = 1e-4):
assert outputs.shape == inputs.shape ,f'outputs.shape : {outputs.shape} != inputs.shape : {inputs.shape}'
criterion = nn.MSELoss()
loss1 = criterion(outputs, inputs)
outputs_e.backward(torch.ones(outputs_e.size()), retain_graph=True)
loss2 = torch.sqrt(torch.sum(torch.pow(inputs.grad, 2)))
inputs.grad.data.zero_()
loss = loss1 + (lamda*loss2)
return loss
optimizer = torch.optim.Adam(autoencoder.parameters(), lr=0.001)
Autoencoder is trained during 3 epochs and printing the loss every 100 batches of images.
epochs = 3
for epoch in range(epochs):
running_loss = 0.0
for i, (inputs, _) in enumerate(train_data_loader, 0):
inputs.requires_grad = True
inputs.retain_grad()
outputs_e, outputs = autoencoder(inputs)
loss = contractive_loss(outputs_e, outputs, inputs)
inputs.requires_grad = False
optimizer.zero_grad()
loss.backward()
optimizer.step()
running_loss += loss.item()
if i % 100 == 99:
print(f'[{epoch + 1}, {i + 1:5d}] loss: {running_loss / 100:.3f}')
running_loss = 0.0
[1, 100] loss: 0.156
[1, 200] loss: 0.086
[1, 300] loss: 0.056
[1, 400] loss: 0.044
[2, 100] loss: 0.036
[2, 200] loss: 0.034
[2, 300] loss: 0.033
[2, 400] loss: 0.032
[3, 100] loss: 0.030
[3, 200] loss: 0.030
[3, 300] loss: 0.030
[3, 400] loss: 0.029

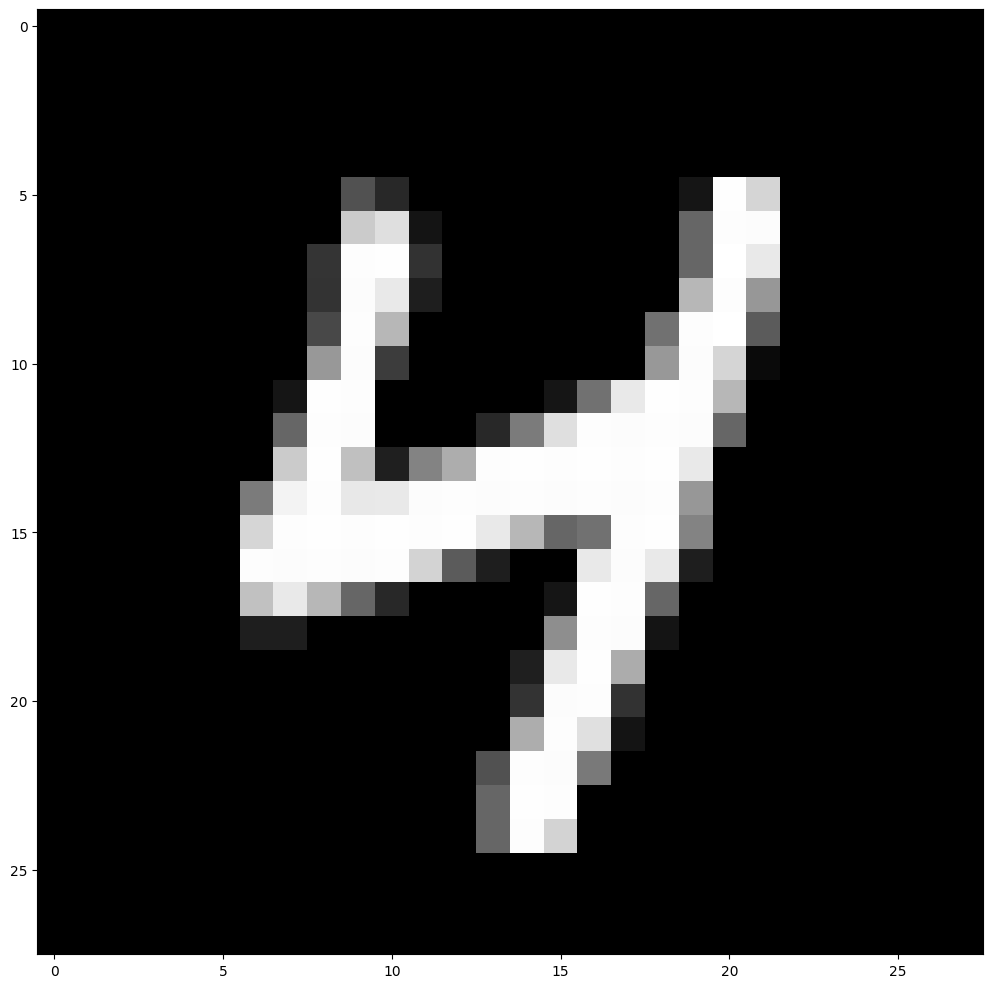

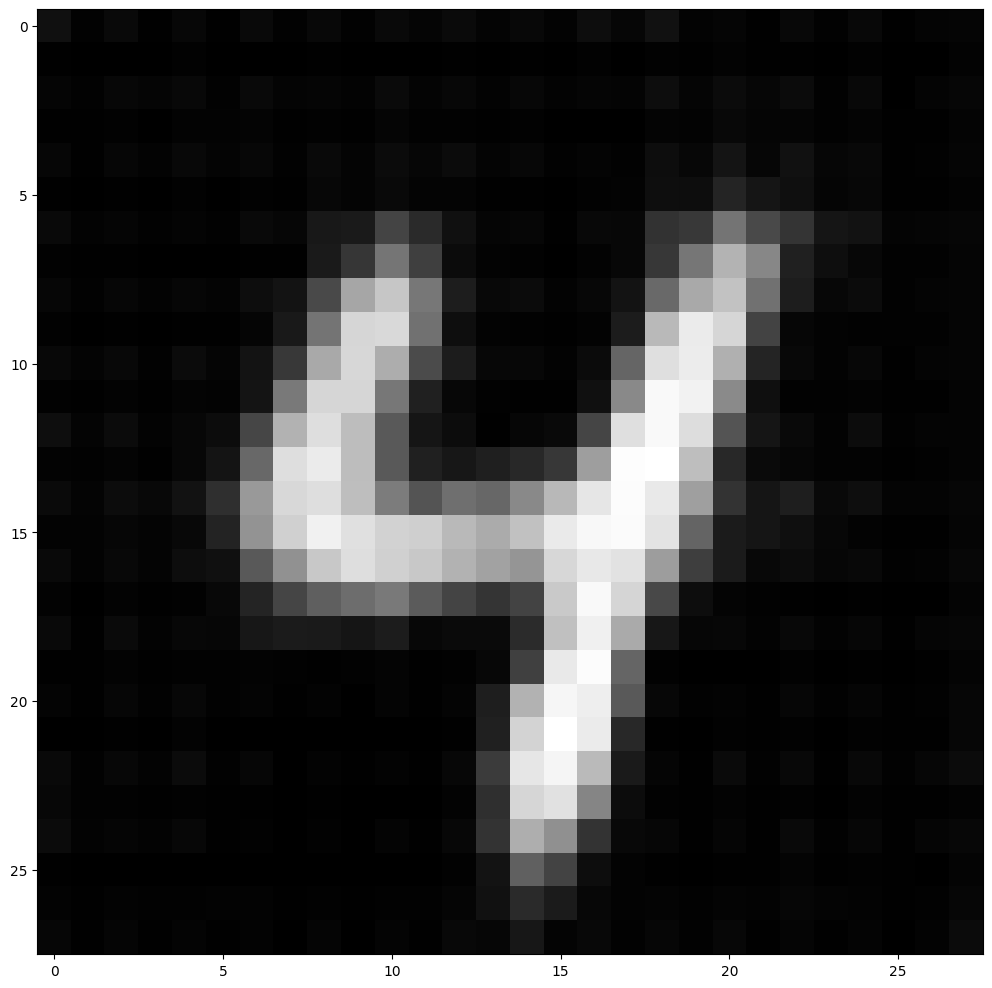

An original training sample is shown below, with the reconstruction made by autoencoder from the 5 dimensions.
imshow(img=torch.Tensor(X_ref[1]))
test_sample = torch.Tensor(np.expand_dims(X_ref[1], axis=0))
_, X_reconstructed = autoencoder(test_sample)
X_reconstructed = torch.squeeze(X_reconstructed, axis=0)
imshow(img=X_reconstructed.detach())
test_dataset = torchvision.datasets.MNIST(
root="/tmp/mnist/test-2/",
train=False,
download=True,
)
Downloading http://yann.lecun.com/exdb/mnist/train-images-idx3-ubyte.gz
Downloading http://yann.lecun.com/exdb/mnist/train-images-idx3-ubyte.gz to /tmp/mnist/test-2/MNIST/raw/train-images-idx3-ubyte.gz
Extracting /tmp/mnist/test-2/MNIST/raw/train-images-idx3-ubyte.gz to /tmp/mnist/test-2/MNIST/raw
Downloading http://yann.lecun.com/exdb/mnist/train-labels-idx1-ubyte.gz
Downloading http://yann.lecun.com/exdb/mnist/train-labels-idx1-ubyte.gz to /tmp/mnist/test-2/MNIST/raw/train-labels-idx1-ubyte.gz
Extracting /tmp/mnist/test-2/MNIST/raw/train-labels-idx1-ubyte.gz to /tmp/mnist/test-2/MNIST/raw
Downloading http://yann.lecun.com/exdb/mnist/t10k-images-idx3-ubyte.gz
Downloading http://yann.lecun.com/exdb/mnist/t10k-images-idx3-ubyte.gz to /tmp/mnist/test-2/MNIST/raw/t10k-images-idx3-ubyte.gz
Extracting /tmp/mnist/test-2/MNIST/raw/t10k-images-idx3-ubyte.gz to /tmp/mnist/test-2/MNIST/raw
Downloading http://yann.lecun.com/exdb/mnist/t10k-labels-idx1-ubyte.gz
Downloading http://yann.lecun.com/exdb/mnist/t10k-labels-idx1-ubyte.gz to /tmp/mnist/test-2/MNIST/raw/t10k-labels-idx1-ubyte.gz
Extracting /tmp/mnist/test-2/MNIST/raw/t10k-labels-idx1-ubyte.gz to /tmp/mnist/test-2/MNIST/raw
100%|██████████| 9912422/9912422 [00:00<00:00, 102085407.12it/s]
100%|██████████| 28881/28881 [00:00<00:00, 107104945.91it/s]
100%|██████████| 1648877/1648877 [00:00<00:00, 31947465.07it/s]
100%|██████████| 4542/4542 [00:00<00:00, 8190253.12it/s]
A custom dataset class is used to apply each transformation to the images.
class CustomMNIST(Dataset):
def __init__(
self,
subset,
transform: Optional[Union[torch.nn.Module, torchvision.transforms.Compose]] = None
) -> None:
self.subset = subset
self.transform = transform
def __getitem__(self, index):
x, y = self.subset[index]
if self.transform:
x = self.transform(x)
return x, y
def __len__(self) -> int:
return len(self.subset)
gaussian_blur_dataset = CustomMNIST(
subset=test_dataset,
transform=torchvision.transforms.Compose(
[
torchvision.transforms.GaussianBlur(
kernel_size=(5, 9),
sigma=1.25,
),
torchvision.transforms.ToTensor(),
],
),
)
elastic_transform_dataset = CustomMNIST(
subset=test_dataset,
transform=torchvision.transforms.Compose(
[
torchvision.transforms.ElasticTransform(
alpha=60.0,
sigma=5.0,
),
torchvision.transforms.ToTensor(),
],
),
)

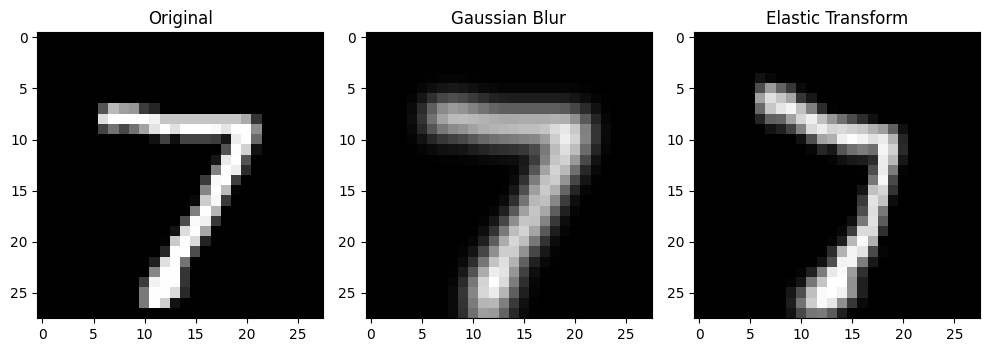

fig, axs = plt.subplots(nrows=1,
ncols=3,
figsize=(10, 10))
for ax, img, title in zip(axs.flat,
[torchvision.transforms.ToTensor()(test_dataset[0][0]),
gaussian_blur_dataset[0][0],
elastic_transform_dataset[0][0]],
["Original",
"Gaussian Blur",
"Elastic Transform"]):
ax.imshow(np.transpose(img, (1, 2, 0)), cmap=plt.cm.gray)
ax.set_title(title)
fig.tight_layout()
plt.show()
The encoder part of the trained autoencoder is used to obtain the 5 latent dimensions of the reference dataset.
X_test_gaussian_blur = np.array([X_sample.tolist() for X_sample, _ in tqdm(gaussian_blur_dataset)]).astype(np.float32)
X_test_elastic_transform = np.array([X_sample.tolist() for X_sample, _ in tqdm(elastic_transform_dataset)]).astype(np.float32)
with torch.no_grad():
X_ref_encoded = autoencoder.encoder(torch.Tensor(X_ref)).numpy()
X_test_gaussian_blur_encoded = autoencoder.encoder(torch.Tensor(X_test_gaussian_blur)).numpy()
X_test_elastic_transform_encoded = autoencoder.encoder(torch.Tensor(X_test_elastic_transform)).numpy()

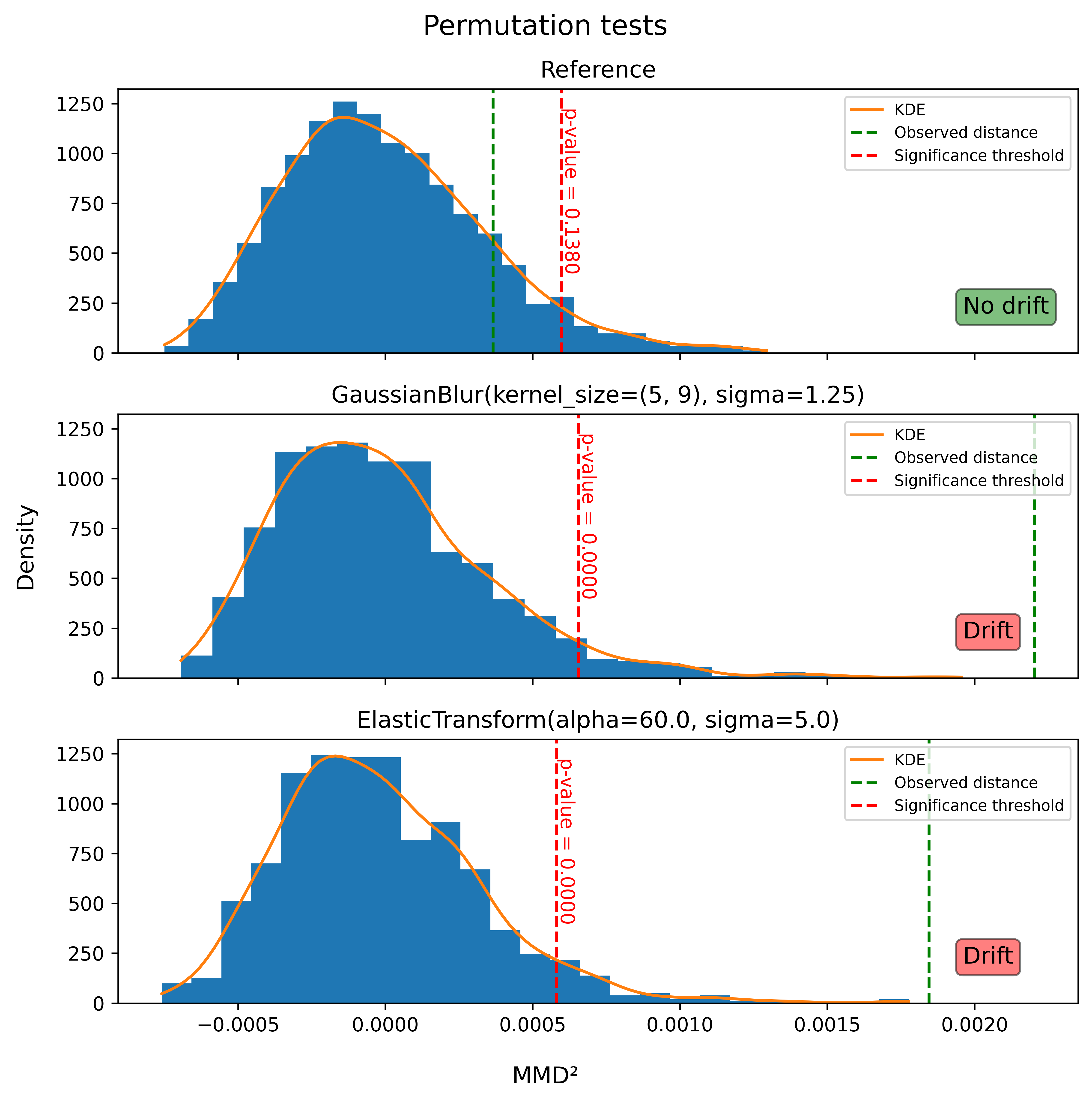

A significance level of \(\alpha = 0.05\) is set to perform the hypothesis test.
alpha = 0.05
Maximum Mean Discrepancy (MMD) [1] imported from Frouros is used with a Radial Basis Function kernel (RBF), set by default in MMD. In addition to calculating the corresponding MMD statistic, p-value is estimated using permutation test.
Note: Only 1000 of the 30000 samples of the reference dataset are used to fit the detector, as well as 1000 samples per each of the three test datasets (reference, gaussian blur and elastic transform). This is due to the high memory requirements demanded by MMD.
num_samples = 1000
detector = MMD(
callbacks=[
PermutationTestDistanceBased(
num_permutations=1000,
random_state=seed,
num_jobs=-1,
name="permutation_test",
verbose=False,
),
],
)
_ = detector.fit(X=X_ref_encoded[:num_samples])
X_ref_sample = X_ref_encoded[np.random.randint(low=num_samples, high=X_ref_encoded.shape[0], size=num_samples)]
X_gaussian_blur_sample = X_test_gaussian_blur_encoded[np.random.randint(low=0, high=X_test_gaussian_blur_encoded.shape[0], size=num_samples)]
X_elastic_transform_sample = X_test_elastic_transform_encoded[np.random.randint(low=0, high=X_test_elastic_transform_encoded.shape[0], size=num_samples)]
Compare each test dataset to the dataset fitted by MMD.
permutation_test_logs = {}
for sample, type_ in zip([X_ref_sample,
X_gaussian_blur_sample,
X_elastic_transform_sample],
["Reference",
"GaussianBlur(kernel_size=(5, 9), sigma=1.25)",
"ElasticTransform(alpha=60.0, sigma=5.0)"]
):
mmd, callbacks_logs = detector.compare(X=sample)
permutation_test_logs[type_] = copy.copy(callbacks_logs["permutation_test"])
mmd, p_value = mmd.distance, callbacks_logs["permutation_test"]["p_value"]
print(f"{type_}:\n MMD statistic={round(mmd, 4)}, p-value={round(p_value, 4)}, drift={p_value < alpha}")
Reference:
MMD statistic=0.0004, p-value=0.138, drift=False
GaussianBlur(kernel_size=(5, 9), sigma=1.25):
MMD statistic=0.0022, p-value=0.0, drift=True
ElasticTransform(alpha=60.0, sigma=5.0):
MMD statistic=0.0018, p-value=0.0, drift=True
As expected, GaussianBlur and ElasticTransform datasets are significantly different (drift) from the reference dataset. Test reference samples are confirmed to be from the sample distribution of the original dataset (no drift).
The following are the graphs of the permutation tests.
num_bins = 25
x_values = 100
num_percentile = 100-alpha*100
n_rows = 3
fig, axs = plt.subplots(nrows=n_rows, ncols=1, figsize=(8, 8), sharex=True, sharey=True, dpi=600)
y_lim = 0.0
for ax, (type_, permutation_test) in zip(axs.flat, permutation_test_logs.items()):
permutation_tests = permutation_test["permuted_statistics"]
observed_statistic = permutation_test["observed_statistic"]
p_value = permutation_test["p_value"]
ax.hist(permutation_tests, bins=num_bins, density=True)
xs = np.linspace(min(permutation_tests), max(permutation_tests), num=x_values)
permutation_tests_density = gaussian_kde(permutation_tests).evaluate(xs)
ax.plot(xs, permutation_tests_density, label="KDE")
ax.axvline(observed_statistic, color="green", linestyle="--", label="Observed distance")
ax.set_title(type_)
drift = p_value < alpha
ax.text(0.88, 0.15, "Drift" if drift else "No drift", transform=ax.transAxes, fontsize=12, bbox={"boxstyle": "round", "facecolor": "red" if drift else "green", "alpha":0.5})
# Get the y limit
ax_y_lim = max(ax.get_lines()[0].get_ydata())
if y_lim < ax_y_lim:
y_lim = ax_y_lim
# Finish plot using the y limit
for ax, (_, permutation_test) in zip(axs.flat, permutation_test_logs.items()):
permutation_tests = permutation_test["permuted_statistics"]
p_value = permutation_test["p_value"]
percentile = np.percentile(permutation_tests, q=num_percentile)
ax.axvline(percentile, color="red", linestyle="--", label="Significance threshold")
ax.text(percentile, y_lim/n_rows, s=f"p-value = {p_value:.4f}", rotation=270, color="red", fontsize=10)
ax.legend(fontsize=8)
fig.suptitle("Permutation tests", fontsize="x-large")
fig.supxlabel("MMD²")
fig.supylabel("Density")
fig.tight_layout()
plt.show()
Arthur Gretton, Karsten M. Borgwardt, Malte J. Rasch, Bernhard Schölkopf, and Alexander Smola. A kernel two-sample test. Journal of Machine Learning Research, 13(25):723–773, 2012. URL: http://jmlr.org/papers/v13/gretton12a.html.
Diederik P Kingma and Jimmy Ba. Adam: a method for stochastic optimization. arXiv preprint arXiv:1412.6980, 2014.
Salah Rifai, Pascal Vincent, Xavier Muller, Xavier Glorot, and Yoshua Bengio. Contractive auto-encoders: explicit invariance during feature extraction. In Proceedings of the 28th international conference on international conference on machine learning, 833–840. 2011.
